Datasheet
Power Accessories

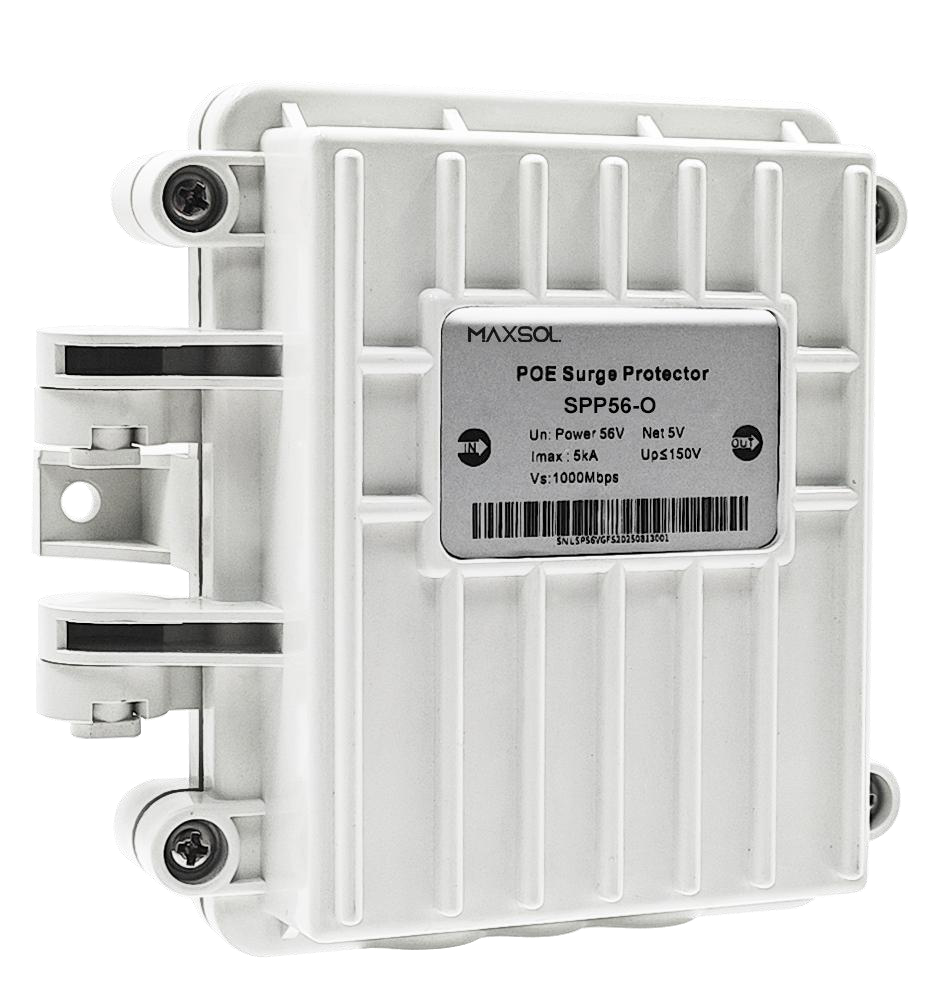

Outdoor POE Surge Protector
ModelSPP56-O
Overview
This PoE Surge Protector is designed to protect Ethernet and PoE devices in outdoor and industrial environments. Built with high-quality components and an advanced circuit design, it ensures stable and reliable performance. It provides dual protection for both data and power lines, effectively preventing damage caused by lightning strikes, ESD, and voltage surges. Ideal for IP cameras, wireless bridges, access points, and other PoE devices in surveillance and networking systems.
Features
- Multi-protection circuits with Gas Discharge Tube (GDT) and TVS technology
- Dual protection design for both common-mode and differential-mode surges
- TVS array technology with low capacitance for high-speed signal transmission
- Multi-strike surge protection capability for enhanced reliability
- IP65-rated enclosure for full outdoor operation
- 100% shielding design with anti-explosion and waterproof protection
- Compact size for easy installation and flexible deployment
SPP56-O
Specification
Specification
- Model
- SPP56-O
Electrical Parameter(Network & Power)
- Nominal operating voltage Un
- 56V
- Max. continuous operating voltage Uc
- 65V
- Nominal discharge current (8/20µs), In
- 5kV/2.5kA
- Max. discharge current (8/20µs), Imax
- 5kV
Limiting voltage Up
- Line-line
- ≤100V
- Line-PE
- ≤150V
- Adapt transmission rate
- 1000Mbps
- Insertion loss
- ≤0.3dB
- Protection line
- 1-8
- Response time Ta
- ≤1ns
- Load current
- 850mA
- Application
- 10/100/1000BaseT
- Impedance in series
- ≤0.5Ω
Mechanical characteristics
- Dimension
- 155mm*135mm*55mm
- Weight per unit
- (230±5)g
- IP Level
- IP65
- Wiring(In/Out)
- RJ45(Shielding)cable for both
- Enclosure material
- Stainless steel
- Working conditions
- Operation temp.: -20 ~ 60℃, Storage temp.: -40 ~ 85℃ Relative humidity: 5% ~ 95％
- Standards Compliance
- IEC61000, RoHS
- Protocol Compliance
- 802.3af
- Installation place
- Indoor or Outdoor
