Datasheet

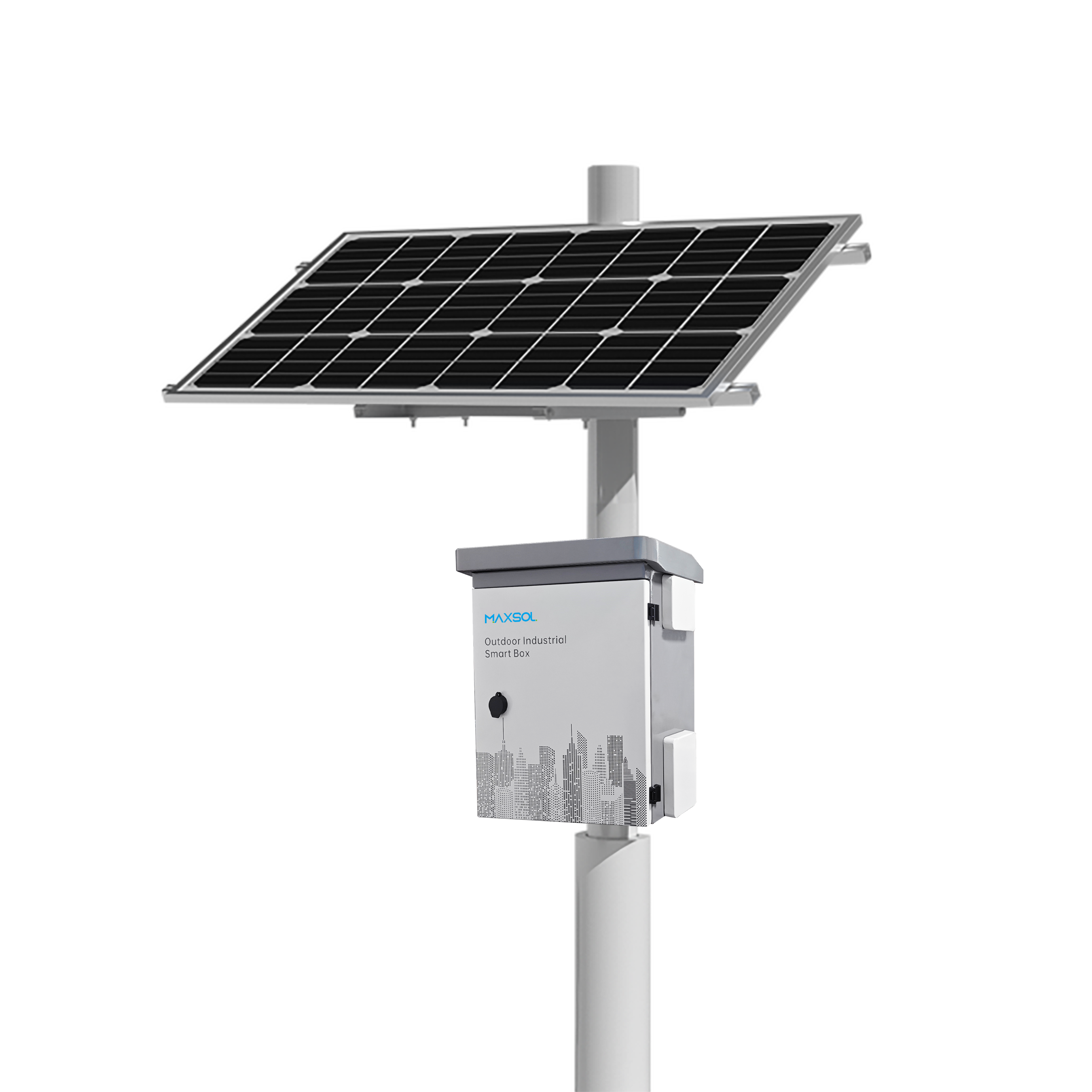

CCTV Solar Power Supply System
CCTV Solar Power Supply System
ModelCS200100
CS200100 | 200W100Ah 1280Wh Solar Power System
The CS200100 200W Solar Power System is equipped with a 100Ah (1280Wh) LiFePO4 battery and an integrated IP65-rated outdoor enclosure, providing reliable and stable off-grid power for outdoor surveillance and remote monitoring applications.
The weatherproof distribution box houses the MPPT solar charge controller and LiFePO4 battery system, ensuring safe operation and efficient solar charging.
Features
- CCTV Solar Power Supply 200W/100Ah 1280Wh Solution
- Solar panel: 200W monocrystalline silicon solar power
- Battery: 100Ah 12.8V LiFePO4 battery, 1280Wh
- 20A MPPT solar controller
- DC output: 4 × DC11–14V 15A (max); 4 × DC12V 5A (max)
- IP65 outdoor cabinet, 500 × 400 × 200 mm
CS200100
Specification
CS200100 (100Ah12.8V 1280Wh)
Model
- Model
- CS200100 (100Ah12.8V 1280Wh)
Solar System
- Batteries
- Class A LiFePO4 batteries 100Ah12.8V 1280Wh
- Solar Controller
- 20A MPPT 12V Controller
- Solar Panel
- 1pcs* 200W Mono Solar Panel
- DC Output
- 4pcs* DC11~14V 15A (Max); 4pcs* DC12V5A (Max)
Solar Panel Spec
- STC peak power
- 200W (single piece)
- Material
- High-efficiency mono-crystalline silicon cell, high-strength aluminum alloy frame
- Panel materials
- Super white toughened glass
- Life
- 25years
- Maximum power (Pm)
- 200W
- Photoelectric Conversion Efficiency (%)
- ≥20.4%
- Voltage at Pmax(Vmp)
- 18V
- Current at Pmax(Imp)
- 10.96A
- Open circuit voltage - VOC (V)
- 22.0V
- Short circuit current - ISC (A)
- 11.62A
- Module dimensions (L×W×H)
- 1480*670*30mm
- Module weight (KG)
- 11 Kg
- Frame material and dimensions (mm)
- Anodized aluminum alloy 1.2mm
- Module packaging
- Tempered glass/EVA/cell/EVA backsheet
Solar Controller Spec
- Max Charging Current
- 20A
- System Voltage
- 12V/24V automatically detect
- Low Voltage Disconnect (LVD)
- 10.8~11.8V/21.6~23.6V, SOC1~5(default: 11.2/22.4V)
- Low Voltage Reconnect (LVR)
- 11.4~12.8V/22.8~25.6V (default: 12.0/24.0V)
- Overcharge Protect
- 15.8/31.3V
- Max volt on PV terminal
- 55V@-20℃;50V@25℃
- Max PV input power
- 260/520W
- Day/Night threshold
- 3.0~20.0V (default: 8.0/16.0V)
- Day/Night delay time
- 0~30min (default: 0min)
- MPPT tracking range
- (Battery Voltage + 2.0V) ~Voc*0.9 *2
- Output Current
- 20A
- Max tracking efficiency
- >99.9%
- Max charge conversion
- 98.0%
- Dimensions(mm)
- 182*187.5*58
- Weight
- 1kg
- Self consumption
- ≤8mA(12V)
Battery Spec
- Battery Capacity
- 12.8V/100AH (1280WH) LiFePO4 battery
- Rated Capacity
- 100Ah
- Rated Voltage
- 12.8V
- Maximum Charging Voltage
- 14.6 ± 0.2V
- Discharge Cut-off Voltage
- 10 ± 0.2V
- Standard Charging Current
- 10A
- Standard Discharging Current
- 10A
- Maximum Continuous Charging Current
- 20A
- Maximum Continuous Discharging Current
- 20A
- Maximum Peak Discharging Current
- 60A
- Cycle Life
- >2000 cycles
- Weight
- ≤ 9.125kg
- Operating Temperature
- Charging: 0℃ ~ 55℃; Discharging: -10℃ ~ 60℃
Battery Protective Board
- Output Voltage
- 8.4V–14.6V
- Operating Current
- ≤20A
- Operating Temperature
Operating Range: -20℃–65℃;
Over-temperature Recovery Temp: 48℃
- Operating State Self-Consumption
- ≤50 µA
- Overcharge Protection Voltage
- 3.65V±0.05V
- Overcharge Recovery Voltage
- 3.55V±0.10V
- Overvoltage Protection Delay
- 0.5–1.5s
- Overcharge Protection Current
- 25–35A
- Overcurrent Protection Delay
- 0.5–1.5s
- Over-discharge Protection Voltage
- 2.1V±0.100V
- Over-discharge Recovery Voltage
- 2.4V±0.100V
- Over-discharge Protection Delay
- 0.5–1.5s
- Over-discharge Protection Current
- 45–60A
- Short Circuit Protection Delay
- 100~600µs
- Short Circuit Current
- 200A±50A
- Short Circuit Recovery Condition
- Disconnect the load
Outdoor Cabinet Spec (IB542)
- Dimensions (length x width x height)
- 500*400*200mm
- Weight (kg)
- 11.5
- Material
- Hot-dip galvanized steel sheet
- Thickness
- 1.2mm
- IP Level
- IP65
- Color
- White+Gray
- Surface Treatment
- Electrostatic Spraying
- Door
- 1
- FAN
- (Optional)
- Waterproof Connector
- 4PCS
- IP Camera/AP/CPE Mounting Plate
- 4PCS
- Key
- 1PCS
- Grounding Connector
- 1PCS
All-in-One Package
- Size and Weight
Battery Cabinet Size: 460*250*535MM; 25.00KG
Solar Panel Size: 1520*710*65MM; 11.00KG
Solar Bracket(SPB300): 600*500*300MM; 13.00KG
- Weight (Include bracket and accessories)
- 49KG
- Content
1* Solar Panel
1* Cabinet(Inside with battery) with DC output connectors
1* Solar Panel Bracket
3 * Pole mount kit
1* Screws pack
1* QIG
- Certificate
- CE, MSDS, UN38.3, DGM, Sea Transportation Certificate
CS200100

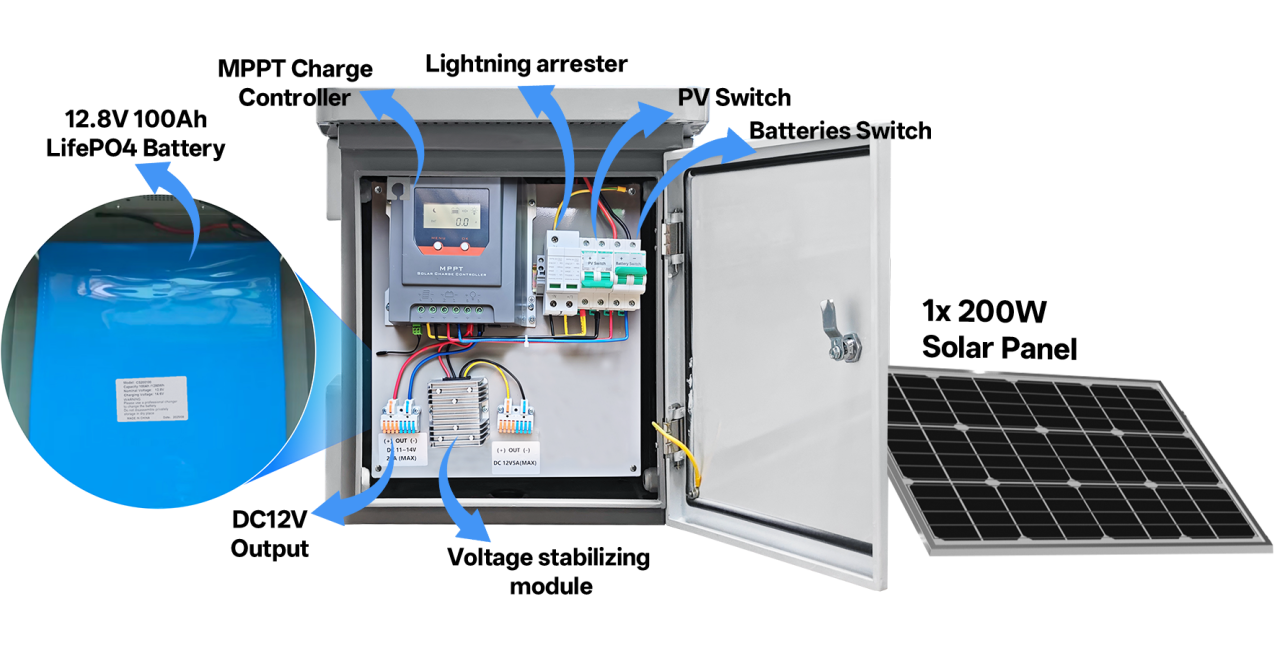

Dimension
CS200100

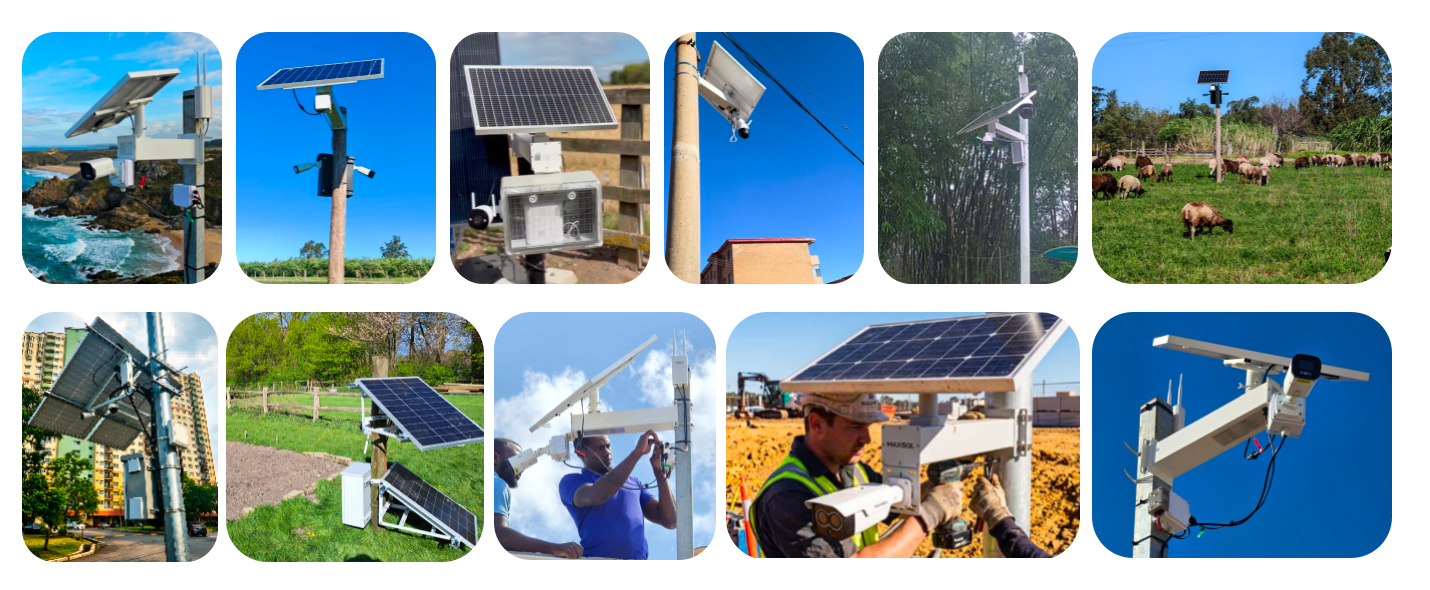

Widely Used Applications
The Solar Power Supply system is widely used in various outdoor surveillance and communication applications, including:
- CCTV surveillance systems
- Solar-powered security and monitoring systems
- 4G/5G wireless routers and communication devices
- Remote and off-grid monitoring stations
- Road and traffic surveillance projects
- Construction site security systems
- Farms, plantations, and agricultural monitoring
- Industrial and perimeter security applications
- Smart city and infrastructure projects
